防塵圈Scrapers-DAI型號規格表及溝槽尺寸
來源：東莞市東晟密封件科技有限公司 - www.yhinjso.cn更新時間：2015-07-13
|
防塵圈 Scrapers - DAI 防塵圈Scrapers-DAI型號規格表及溝槽尺寸 公司名稱：廣東東莞東晟密封件科技有限公司 |
型號
規格
型號
規格
訂貨號
d
h9
D
H9
L
+0.2
D1
h11
H
訂貨號
d
h9
D
H9
L
+0.2
D1
h11
H
DAI0160
16
24.6
5.3
19
7
DAI2400
240
260
10.2
250
18
DAI0200
20
28.6
5.3
23
7
DAI2500
250
270
10.2
260
18
DAI0240
24
32.6
5.3
27
7
DAI2600
260
280
10.2
270
18
DAI0250
25
33.6
5.3
28
7
DAI2700
270
290
10.2
280
18
DAI0280
28
36.6
5.3
31
7
DAI2800
280
300
10.2
290
18
DAI0300
30
38.6
5.3
33
7
DAI3000
300
320
10.2
310
18
DAI0320
32
40.6
5.3
35
7
DAI3200
320
340
10.2
330
18
DAI0350
35
43.6
5.3
38
7
DAI3500
350
370
10.2
360
18
DAI0360
36
44.6
5.3
39
7
DAI3800
380
400
10.2
390
18
DAI0400
40
48.6
5.3
43
7
DAI4000
400
420
10.2
410
18
DAI0420
42
50.6
5.3
45
7
DAI4200
420
440
10.2
430
18
DAI0450
45
53.6
5.3
48
7
DAI4500
450
470
10.2
460
18
DAI0500
50
58.6
5.3
53
7
DAI4600
460
480
10.2
470
18
DAI0560
56
64.6
5.3
59
7
DAI5000
500
520
10.2
510
18
DAI0600
60
68.6
5.3
63
7
DAI5100
510
530
15.2
525
25
DAI0630
63
71.6
5.3
66
7
DAI5200
520
540
15.2
535
25
DAI0650
65
73.6
5.3
68
7
DAI5300
530
550
15.2
545
25
DAI0700
70
78.6
5.3
73
7
DAI5550
555
580
12.7
567.6
20
DAI0750
75
87.2
7.2
81
12
DAI5600
560
585
12.7
572.6
20
DAI0800
80
92.2
7.2
86
12
DAI5750
575
600
12.7
587.6
20
DAI0900
90
102.2
7.2
96
12
DAI6000
600
625
12.7
612.6
20
DAI1000
100
112.2
7.2
106
12
DAI6100
610
635
12.7
622.6
20
DAI1100
110
122.2
7.2
116
12
DAI6300
630
655
12.7
642.6
20
DAI1150
115
127.2
7.2
121
12
DAI6400
640
665
12.7
652.6
20
DAI1200
120
132.2
7.2
126
12
DAI6500
650
675
12.7
662.6
20
DAI1250
125
137.2
10.2
132.6
16
DAI6700
670
695
12.7
682.6
20
DAI1300
130
145
10.2
137.6
16
DAI6800
680
705
12.7
692.6
20
DAI1350
135
150
10.2
142.6
16
DAI7000
700
725
12.7
712.6
20
DAI1400
140
155
10.2
147.6
16
DAI7100
710
735
12.7
722.6
20
DAI1500
150
165
10.2
157.6
16
DAI7200
720
745
12.7
732.6
20
DAI1600
160
175
10.2
167.6
16
DAI7500
750
775
12.7
762.6
20
DAI1800
180
200
10.2
190
18
DAI7700
770
795
12.7
782.6
20
DAI1900
190
210
10.2
200
18
DAI7800
780
805
12.7
792.6
20
DAI2000
200
220
10.2
210
18
DAI8000
800
825
12.7
812.6
20
DAI2100
210
230
10.2
220
18
DAI8500
850
875
12.7
862.6
20
DAI2200
220
240
10.2
230
18
DAI8800
880
905
12.7
892.6
20
DAI2300
230
250
10.2
240
18
DAI9000
900
925
12.7
912.6
20

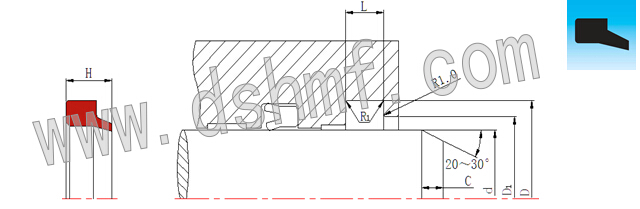

防塵圈 Scrapers - DAI - 公制溝槽尺寸(mm)
軸徑 d h9
溝槽底徑 D H9
槽寬 L +0.2
D1 h11
H
R1≤
C≥
16~70
d+8.6
5.3
d+3
7
0.4
5
75~120
d+12.2
7.2
d+6
12
0.4
5
125~160
d+15
10.2
d+7.6
16
0.4
7
180~500
d+20
10.2
d+10
18
0.8
7.5
510~530
d+30
15.2
d+15
25
0.8
8
555~900
d+25
12.7
d+12.6
20
0.8
7.5
