DSF孔用格萊圈型號規格表 | 型號規格
來源：東莞市東晟密封件科技有限公司 - www.yhinjso.cn更新時間：2015-05-26
|
孔用格萊圈 Slide Ring for Piston - DSF |
DSF孔用格萊圈型號規格表 | 型號規格
型號
規格
型號
規格
訂貨號
孔徑
D H9
槽底徑
d h9
槽寬
L +0.2
訂貨號
孔徑
D H9
槽底徑
d h9
槽寬
L +0.2
DSF0080
8
3.1
2.2
DSF0450
45
34
4.2
DSF0100
10
5.1
2.2
DSF0480L
48
40.5
3.2
DSF0120
12
7.1
2.2
DSF0480
48
37
4.2
DSF0140
14
9.1
2.2
DSF0500
50
39
4.2
DSF0150L
15
10.1
2.2
DSF0500H
50
34.5
6.3
DSF0150
15
7.5
3.2
DSF0520
52
41
4.2
DSF0160L
16
11.1
2.2
DSF0520H
52
36.5
6.3
DSF0160
16
8.5
3.2
DSF0550
55
44
4.2
DSF0180L
18
13.1
2.2
DSF0550H
55
39.5
6.3
DSF0180
18
10.5
3.2
DSF0560
56
45
4.2
DSF0200L
20
15.1
2.2
DSF0560H
56
40.5
6.3
DSF0200
20
12.5
3.2
DSF0600
60
49
4.2
DSF0240L
24
19.1
2.2
DSF0600H
60
44.5
6.3
DSF0240
24
16.5
3.2
DSF0630
63
52
4.2
DSF0250
25
17.5
3.2
DSF0630H
63
47.5
6.3
DSF0250H
25
14
4.2
DSF0640
64
53
4.2
DSF0280
28
20.5
3.2
DSF0640H
64
48.5
6.3
DSF0280H
28
17
4.2
DSF0650
65
54
4.2
DSF0300
30
22.5
3.2
DSF0650H
65
49.5
6.3
DSF0300H
30
19
4.2
DSF0700
70
59
4.2
DSF0320
32
24.5
3.2
DSF0700H
70
54.5
6.3
DSF0320H
32
21
4.2
DSF0750
75
64
4.2
DSF0350
35
27.5
3.2
DSF0750H
75
59.5
6.3
DSF0350H
35
24
4.2
DSF0800L
80
69
4.2
DSF0360
36
28.5
3.2
DSF0800
80
64.5
6.3
DSF0360H
36
25
4.2
DSF0850L
85
74
4.2
DSF0380
38
30.5
3.2
DSF0850
85
69.5
6.3
DSF0380H
38
27
4.2
DSF0900L
90
79
4.2
DSF0400L
40
32.5
3.2
DSF0900
90
74.5
6.3
DSF0400
40
29
4.2
DSF0950L
95
84
4.2
DSF0450L
45
37.5
3.2
DSF0950
95
79.5
6.3
DSF1000L
100
89
4.2
DSF3900
390
365.5
8.1
DSF1000
100
84.5
6.3
DSF4000
400
375.5
8.1
DSF1050L
105
94
4.2
DSF4100
410
385.5
8.1
DSF1050
105
89.5
6.3
DSF4200
420
395.5
8.1
DSF1100L
110
99
4.2
DSF4300
430
405.5
8.1
DSF1100
110
94.5
6.3
DSF4350
435
410.5
8.1
DSF1150
115
99.5
6.3
DSF4400
440
415.5
8.1
DSF1200
120
104.5
6.3
DSF4500
450
425.5
8.1
DSF1250
125
109.5
6.3
DSF4600
460
435.5
8.1
DSF1250H
125
104
8.1
DSF4700
470
445.5
8.1
DSF1300
130
114.5
6.3
DSF4800
480
455.5
8.1
DSF1300H
130
109
8.1
DSF4900
490
465.5
8.1
DSF1350L
135
119.5
6.3
DSF5000
500
475.5
8.1
DSF1350
135
114
8.1
DSF5100
510
485.5
8.1
DSF1400L
140
124.5
6.3
DSF5200
520
495.5
8.1
DSF1400
140
119
8.1
DSF5300
530
505.5
8.1
DSF1450
145
124
8.1
DSF5400
540
515.5
8.1
DSF1500
150
129
8.1
DSF5500
550
525.5
8.1
DSF1550
155
134
8.1
DSF5600
560
535.5
8.1
DSF1600
160
139
8.1
DSF5700
570
545.5
8.1
DSF1650
165
144
8.1
DSF5800
580
555.5
8.1
DSF1700
170
149
8.1
DSF6000
600
575.5
8.1
DSF1750
175
154
8.1
DSF6100
610
585.5
8.1
DSF1800
180
159
8.1
DSF6200
620
595.5
8.1
DSF1900
190
169
8.1
DSF6300
630
605.5
8.1
DSF2000
200
179
8.1
DSF6400
640
615.5
8.1
DSF2100
210
189
8.1
DSF6500
650
625.5
8.1
DSF2200
220
199
8.1
DSF6600
660
635.5
8.1
DSF2300
230
209
8.1
DSF6700
670
642
9.5
DSF2400
240
219
8.1
DSF6800
680
652
9.5
DSF2500
250
229
8.1
DSF7000
700
672
9.5
DSF2600
260
239
8.1
DSF7200
720
692
9.5
DSF2700
270
249
8.1
DSF7500
750
722
9.5
DSF2750
275
254
8.1
DSF7800
780
752
9.5
DSF2800
280
259
8.1
DSF8000
800
772
9.5
DSF2900
290
269
8.1
DSF8200
820
792
9.5
DSF3000
300
279
8.1
DSF8500
850
822
9.5
DSF3100
310
289
8.1
DSF9000
900
872
9.5
DSF3200
320
299
8.1
DSF9500
950
922
9.5
DSF3300
330
305.5
8.1
DSF10000
1000
962
13.8
DSF3400
340
315.5
8.1
DSF11000
1100
1062
13.8
DSF3500
350
325.5
8.1
DSF12000
1200
1162
13.8
DSF3600
360
335.5
8.1
DSF13000
1300
1262
13.8
DSF3700
370
345.5
8.1
DSF14000
1400
1362
13.8
DSF3800
380
355.5
8.1
DSF15000
1500
1462
13.8

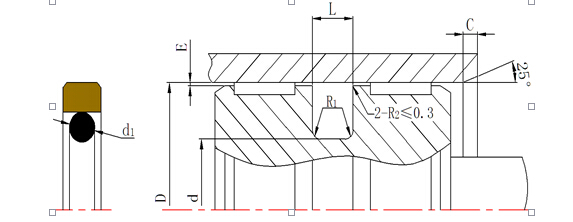

公制溝槽尺寸(mm)
缸徑D H9
溝槽底徑d h9
槽寬L +0.2
O型圈線徑d1
C≥
R1≤
8~24
D-4.9
2.2
1.8
2
0.4
15~48
D-7.5
3.2
2.65
2
0.4
25~110
D-11
4.2
3.55
3
0.8
50~140
D-15.5
6.3
5.3
5
1.2
125~320
D-21
8.1
7
7.5
1.6
330~660
D-24.5
8.1
7
8
1.6
670~990
D-28
9.5
8.4
8
1.6
1000~1500
D-38
13.8
12
8.5
2
--------------更多DSF孔用格萊圈型號規格表 | 型號規格盡在東晟密封官網www.yhinjso.cn--------------
